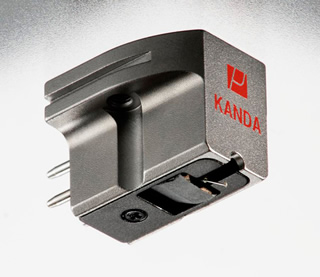

Yokeless Ring Magnet MC Cartridge

MUTECH RM-KANDA

RM-KANDA was made by Mr.Eiji Kanda with his long experience and rich knowledge.

Black rhodium plating for the first time in the industry makes the sound quality pure.

It is One and only one generating electricity structure removing Yoke which is different from general MC cartridge and placing original Core (SS-μM) into the magnetic material Neodymium #50.

Ultimate MC cartridge was born when the special quality this core material ((SS-μ M)) has is drawn out to the full and remarkable low impedance-ization is achieved as well as output is raised.

RM-KANDA have been awarded an Analog Gland Prix 2016 held by Ongen publishing company.

RM-KANDA have been awarded an Audio Excellent Award 2016 held by Ongen publishing company.


Features



〇Black rhodium plating for the first time in the industry.
〇Low impedance High output ( 0.5mV )with placing original Core(SS-μM) into the magnetic material Neodymium #50.
〇Removing Yoke, placing original Core (SS-μM) into the magnetic material Neodymium #50. (Ring Magnet structure)
〇Restraining magnetic distortion and Raising AC magnetic response.
〇The phase distortion is reduced to the limit because the current value to the voltage becomes so big that the impedance of the coil is small.
〇Small inner loss makes the sound stage is made clear.
〇Original custom made suspension wire made sound quality highly.


Specifications



・Model : RM-KANDA
・Type : Yokeless ring magnet MC Cartridge
・Output voltage : 0.5mmV ( 1kHz, 3.54cm/sec)
・Tracking force range : 1.8～2.0g
・Frequency response : 10～45,000Hz
・Coil impedance : 2.0Ω
・Cross Talk : more28dB(1kHz)
・Chanel balance : less 0.5db(1kHz)
・Stylus : semi-line contact stylus　
・Cantilever : φ0.3ｍｍ　nude boron　
・Weight : 9g
・Terminal : rhodium plating

　　
